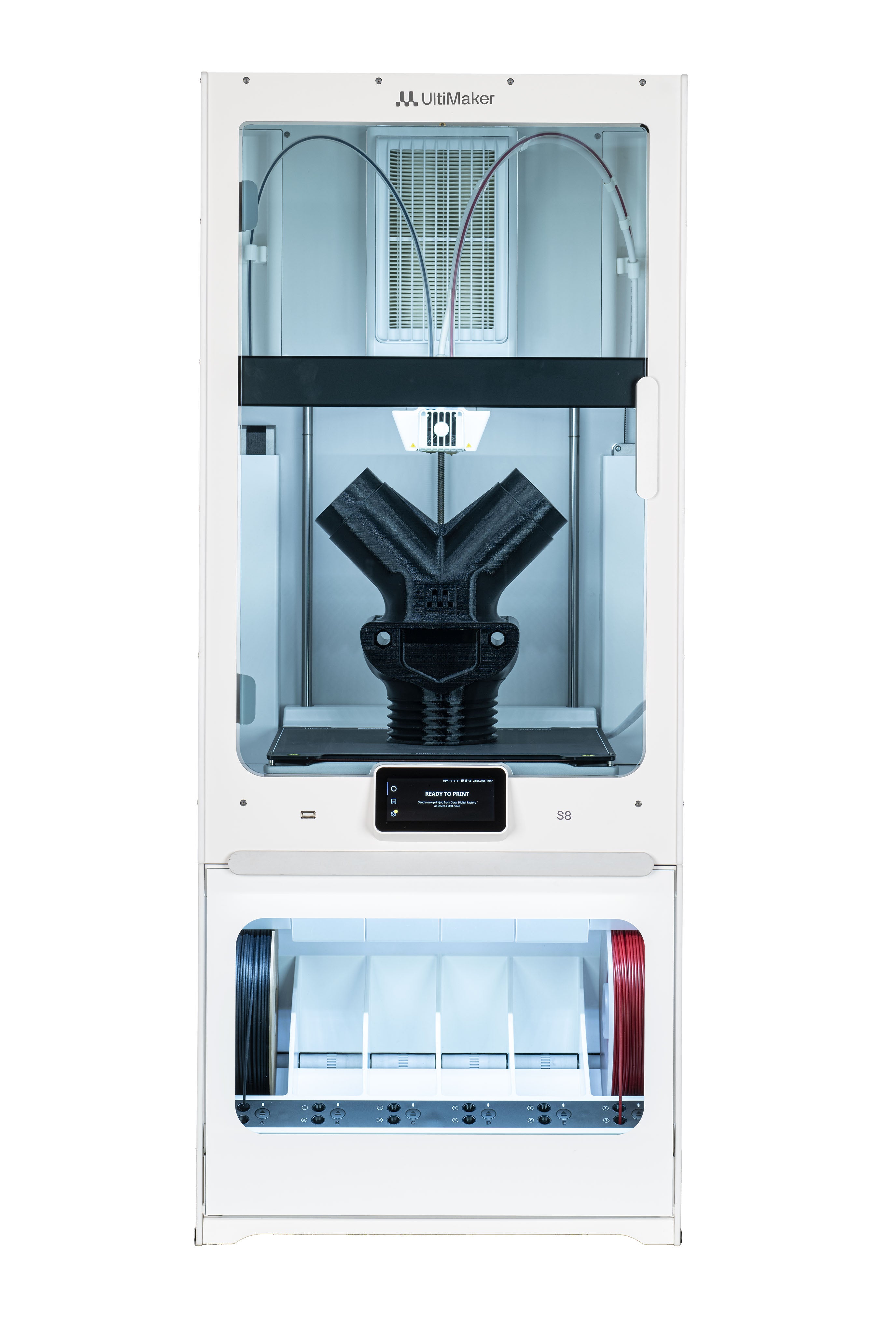

UltiMaker S8 Pro Bundle

The UltiMaker S8 Pro Bundle is the ultimate solution for professional-grade 3D printing, combining unmatched speed, precision, and reliability with smart, automated material management. Engineered with the advanced UltiMaker Cheetah motion planner, the S8 Pro Bundle delivers up to 4x more productivity compared to its predecessors. Capable of speeds up to 500mm/s and accelerations up to 50,000mm/s², this system is designed for businesses that require fast turnaround times without compromising on quality. The S8 Pro Bundle includes a Material Handling Station that ensures seamless transitions between up to six materials, making it ideal for complex, multi-material applications.

Key Features

• Blazing Productivity:Achieve up to 4x the productivity with the UltiMaker Cheetah motion planner.
• High-Speed Printing: Print at speeds up to 500mm/s with accelerations up to 50,000mm/s².
• Superior Print Quality: Maintain precision with 0.15mm layer accuracy, even at high speeds.
• Dual Extrusion: Create complex multi-material parts with dual extrusion capability.
• Advanced Print Cores: High-flow AA+ and CC+ print cores for faster, cleaner prints.
• Material Handling Station: Automatically manages up to six materials for uninterrupted printing.
• Integrated EPA Filter: Remove up to 95% of ultrafine particles for a cleaner printing environment.
• Flexible Build Plate: PEI-coated flexible build plate for easy part removal and perfect alignment.
• Cura Integration: Seamless integration with UltiMaker Cura for streamlined workflow and increased print success.

What's Included

• UltiMaker S8 3D Printer
• Material Handling Station
• AA+ 0.4 Print Core
• CC+ 0.4 Print Core
• PEI-Coated Flexible Build Plate
• Integrated EPA Filter
• Power Supply and Cables
• Online Setup and Onboarding Tutorial
• 12-Month Warranty (Upgradable with extended service plan)

Technical Specifications

Dimensions

• Build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
• Assembled dimensions: W 495 x D 500 x H 1190 mm (W 19.5 x D 19.7 x H 46.9 inches)
• Print technology: Fused Deposition Modeling (FDM)
• Compatible filament diameter: 2.85 mm
• Weight: 41.9 kg (92.4 lbs)
• Maximum power output: 500 W
• Dimensional accuracy: ± 0.15 mm ± 0.15% feature nominal length*
• Extrusion flow: Up to 35 mm³/s
• XY speed, acceleration, jerk: Up to 500 mm/s, up to 50.000 mm/s², up to 100.000.000 mm³/s

Printer Properties

• Layer resolution: 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron
• XYZ resolution: 6.9, 6.9, 2.5 micron
• Feeder type: Dual-geared feeder, reinforced for composite materials
• Display: 4.7-inch (11.9 cm) color touchscreen
• Print core replacement: Swappable print cores
• Print head: Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.
• Nozzle diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Operation Parameters

• Filter technology: Replaceable EPA filter
• Air extraction rate: 1 - 50 m3/h (35 m3/h nominal rate for most materials at 23°C)
• Nozzle temperature: 180 - 280°C
• Nozzle heat-up time: < 2 minutes
• Operating sound: < 51 dBA
• Build plate leveling: Advanced active leveling with more accurate inductive sensors
• Build plate: PEI-coated flexible steel build plate
• Build plate heat-up time: < 5 minutes (from 20 to 60°C)
• Operating ambient temperature: 15 - 32°C (59 - 90°F)
• Non-operating temperature: 0 - 32°C (32 - 90°F)

Ecosystem

• Supplied free software: UltiMaker Cura - print preparation software UltiMaker Digital Factory - All-in-one cloud-based print, printer, and user management software
• Supported OS: MacOS, Windows, and Linux
• Plugin integration: SolidWorks, Siemens NX, Autodesk Inventor
• Supported file types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE. gz, UFP
• File transfer: Wi-Fi (2.4 and 5 GHz), Ethernet, USB

Safety and Compliance

• Certification: CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
• More information:Learn more about UltiMaker S7 Pro Bundle safety and compliance.

Why Choose the UltiMaker S8 Pro Bundle

The UltiMaker S8 Pro Bundle sets a new standard in 3D printing, offering unmatched speed, precision, and reliability. With its advanced features and user-friendly design, the S8 Pro Bundle is perfect for businesses looking to enhance their production capabilities. The dual extrusion system allows for complex multi-material prints, while the high-flow print cores ensure faster and cleaner results. The Material Handling Station automates material management, reducing downtime and ensuring seamless transitions between different materials. Additionally, the integrated EPA filter and flexible build plate contribute to a cleaner and more efficient printing environment. The seamless integration with UltiMaker Cura simplifies the entire printing process, making the S8 Pro Bundle an ideal choice for professionals seeking to optimize their workflow.

Experience the future of 3D printing with the UltiMaker S8 Pro Bundle and transform your production workflow with unparalleled speed and precision.
