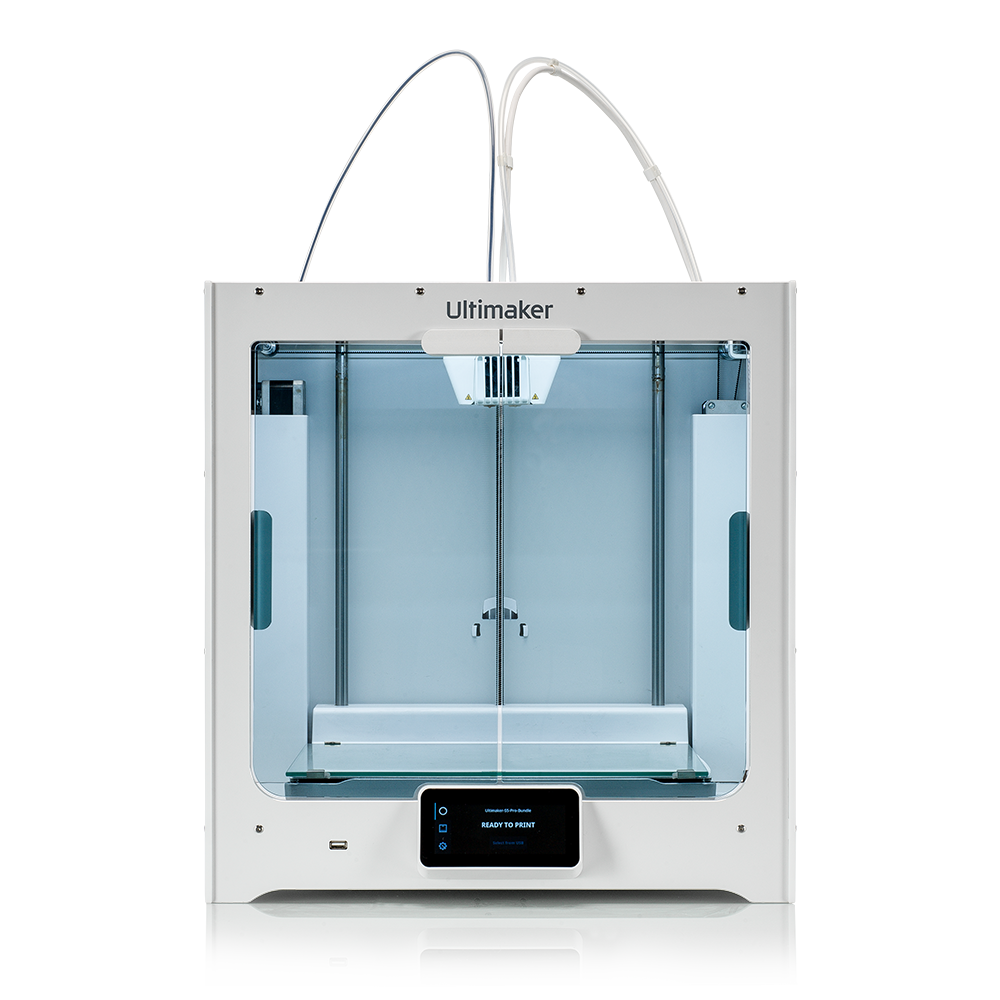

UltiMaker S5 3D Printer
Discover the UltiMaker S5, an easy-to-use desktop 3D printer with a large build volume that delivers accurate, industrial-grade parts consistently. With a simple setup, high uptime, and reliable dual extrusion, the UltiMaker S5 is the complete professional 3D printing solution. Now, it includes unending access to enterprise software, UltiMaker Essentials.
Features
The UltiMaker S5 is designed to run continuously and maximize uptime. It's best-in-class technical specifications ensure reliable performance.
- Large Build Volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
- Material Compatibility: High-strength glass and carbon fiber filament
- High Resolution: Down to 20 microns (0.001 inches) layer resolution
- Open Filament System: Print with any 2.85 mm material
- User-Friendly Interface: 4.7-inch touchscreen (iF Design Award 2019 winner)
What's Included
- UltiMaker S5 3D Printer
- 3 Print Cores Included: 2 x AA Build Material Core and 1 x BB Support Material Core
- 1 Glass Bed
- 750gr. Spool of Tough PLA and 750gr Spool of PVA Dissolvable Support
- USB key, glue stick, grease, hex wrenches, cables
- Cura, award-winning print preparation software
- Powerful UltiMaker app
- Calibration card for leveling the build plate
- Comprehensive 12-month warranty
Technical Specifications
Dimensions
- Build Volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
- Assembled Dimensions: W 495 x D 585 x H 780 mm (W 19.5 x D 23 x H 30.7 inches)
- Print Technology: Fused Deposition Modeling (FDM)
- Compatible Filament Diameter: 2.85 mm
- Weight: 29.1 kg (64.2 lbs)
- Maximum Power Output: 500 W
Printer Properties
- Layer Resolution: 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron
- XYZ Resolution: 6.9, 6.9, 2.5, micron
- Feeder Type: Dual-geared feeder, reinforced for composite materials
- Display: 4.7 inch (11.9 cm) colour touchscreen
- Print Core Replacement: Swappable print cores
- Print Head: Dual extrusion print head with an auto-nozzle lifting system, swappable print cores.
- Nozzle Diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Operation Parameters
- Nozzle Temperature: 180 - 280 °C
- Nozzle Heat-Up Time: < 2 minutes
- Operating Sound: < 51 dBA
- Build Plate Leveling: Advanced active leveling
- Build Plate: Glass build plate
- Build Plate Heat-Up Time: < 5 minutes (from 20 to 60 °C)
-
Operating Ambient Temperature: 15 - 32 °C (59 - 90 °F)
- Non-Operating Temperature: 0 - 32 °C (32 - 90 °F)
Ecosystem
- Supplied Free Software: UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools
- Supported OS: MacOS, Windows, and Linux
- Plugin Integration: SolidWorks, Siemens NX, Autodesk Inventor
- Supported File Types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP
- File Transfer: Wi-Fi (2.4 GHz), Ethernet, USB
Safety and Compliance
- Certification: CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
- More Information: Learn more about UltiMaker S5 safety and compliance
Software
UltiMaker Essentials provides the tools needed to start 3D printing at work while meeting IT requirements. Features include remote printer management, firmware firewalls, verified plugins, and direct software support. Learn more by watching this short video.
Enjoy unending access to enterprise software with UltiMaker Essentials.
Why Choose the UltiMaker S5
Choosing the UltiMaker S5 means investing in a 3D printer that combines power, reliability, and versatility. Here's why it stands out:
- Industrial-Grade Performance: Achieve high-quality, precise prints suitable for professional applications.
- Ease of Use: The intuitive touchscreen interface and simple setup process make it accessible for users of all skill levels.
- Versatility: Compatible with a wide range of materials, including high-strength composites, for diverse printing needs.
- Continuous Operation: Designed for high uptime, ensuring your projects are completed efficiently.
- Comprehensive Support: Benefit from UltiMaker Essentials, which includes remote management and direct software support to keep your operations running smoothly.
