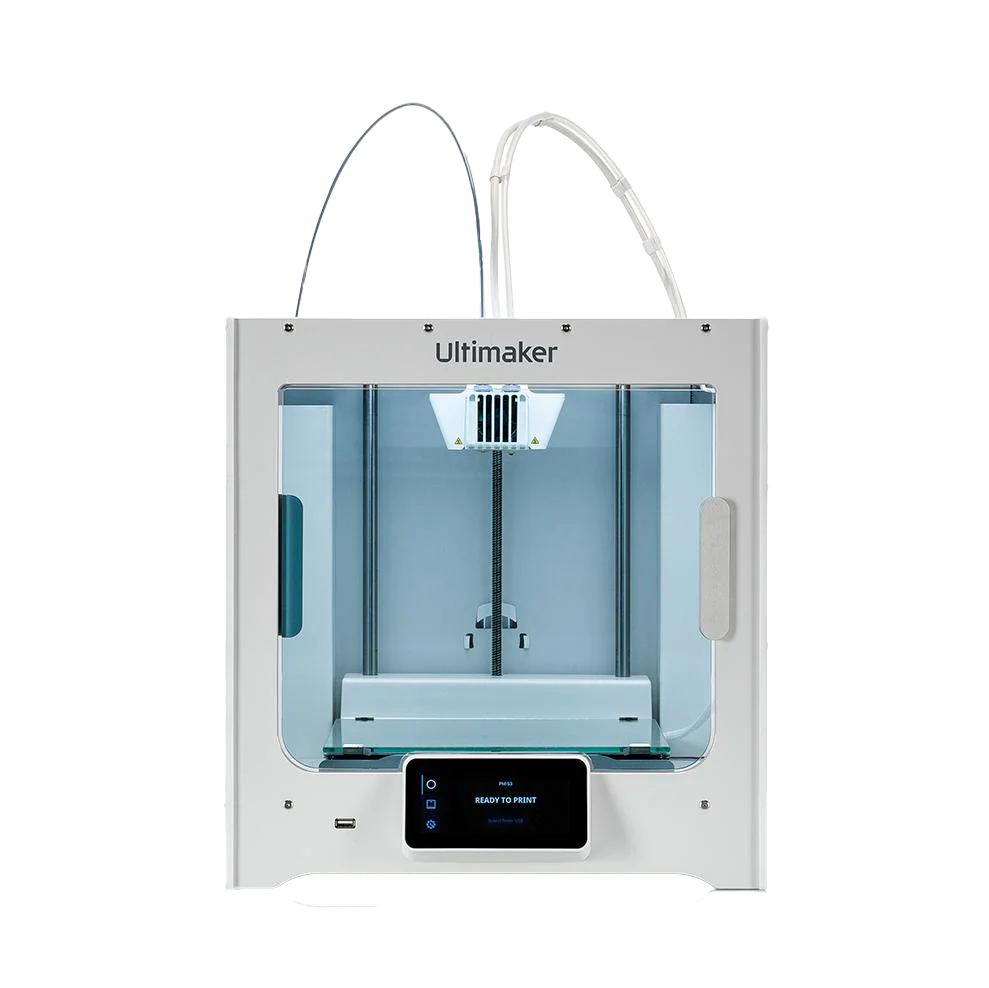

UltiMaker S3 3D Printer

Key Features

The UltiMaker S3 is a complete production system you can depend on in the office or studio. With advanced features to ensure a reliable printing experience, it's still simple to use thanks to its award-winning touch interface and seamless software integration.

1. Dual Extrusion: The S3 features dual extrusion with a build volume of 230 x 190 x 200 mm (9 x 7.4 x 7.9 in), allowing for complex prints with multiple materials.
2. High Resolution: Achieve layer resolutions down to 20 microns (0.001 in) for detailed and precise prints.
3. Open Filament System: Compatible with glass and carbon fiber composites, providing flexibility in material choice.
4. Filament Flow Sensors: Dual filament flow sensors notify you if material runs out, ensuring uninterrupted printing.
5. Touchscreen Interface: The 4.7-inch touchscreen interface, winner of the iF Design Award 2019, makes operation intuitive and straightforward.

Next-Generation Reliability

The UltiMaker S3 features advanced active leveling, a stiffer build platform, a heated build plate, and more accurate stepper drivers, resulting in the highest print quality for a machine in this form factor. Dual filament flow sensors ensure you are alerted if you run out of material, preventing print failures.

Technical Specifications

Dimensions

• Build Volume: 230 x 190 x 200 mm (9 x 7.4 x 7.9 inches)
• Assembled Dimensions: W 394 x D 489 x H 637 mm (W 15.5 x D 19.3 x H 25.1 inches)
• Print Technology: Fused Deposition Modeling (FDM)
• Compatible Filament Diameter: 2.85 mm
• Weight: 14.4 kg (31.7 lbs)
• Maximum Power Output: 350 W

Printer Properties

• Layer Resolution: 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron
• XYZ Resolution: 6.9, 6.9, 2.5 micron
• Feeder Type: Dual-geared feeder, reinforced for composite materials
• Display: 4.7 inch (11.9 cm) colour touchscreen
• Print Core Replacement: Swappable print cores
• Print Head: Dual extrusion print head with an auto-nozzle lifting system, swappable print cores.
• Nozzle Diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Operations Parameters

• Build Speed: < 24 mm³/s
• Nozzle Temperature: 180 - 280 °C
• Nozzle Heat-Up Time: < 2 minutes
• Operating Sound: < 50 dBA
• Build Plate Leveling: Advanced active leveling
• Build Plate: 20 - 120 °C heated glass build plate
• Build Plate Heat-Up Time: < 4 minutes (from 20 to 60 °C)
• Operating Ambient Temperature: 15 - 32 °C (59 - 90 °F)
• Non-Operating Temperature: 0 - 32 °C (32 - 90 °F)

Ecosystem

• Supplied Free Software: UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools
• Supported OS: MacOS, Windows, and Linux
• Plugin Integration: SolidWorks, Siemens NX, Autodesk Inventor
• Supported File Types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP
• File Transfer: Wi-Fi (2.4 GHz), Ethernet, USB

Safety and Compliance

• Certification: CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
• More Information: Learn more about UltiMaker safety and compliance

Software

UltiMaker Essentials gives you the tools you need to start 3D printing at work while meeting IT requirements.

With features including remote printer management, firmware firewalls, verified plugins, and direct software support. Learn more by watching this short video

Why Choose the UltiMaker S3?

The UltiMaker S3 stands out for its combination of ease of use, advanced features, and cost-effectiveness. It is designed to deliver high-quality, reliable 3D printing, making it an ideal choice for businesses looking to innovate and streamline their production processes. With the UltiMaker S3, you can achieve professional-grade prints with minimal hassle, right from your desktop.
