Ultimaker

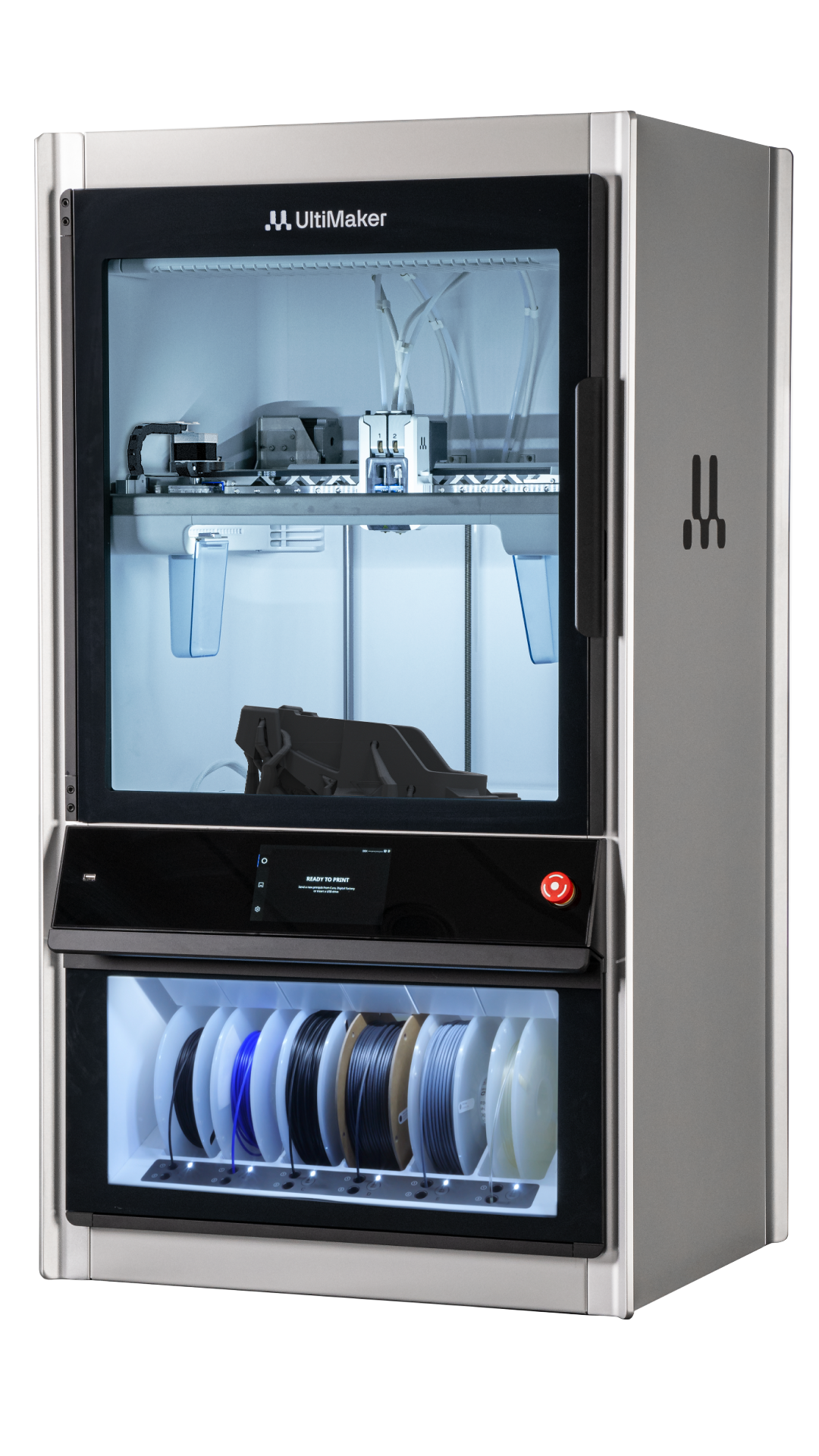

UltiMaker Factor 4+ 3D Printer
Sale price$28,704.01 CAD
Regular price$31,645.00 CAD
62-234991
The UltiMaker Factor 4+ is a rugged, industrial workhorse built to deliver high-strength composite parts right on the factory floor, now at twice the speed. Combining high-flow print cores with an advanced motion planner, it slashes production times without losing accuracy. Plus, with the new TRACE system tracking real-time print date directly from the hardware, you get immediate quality validation for every part you create. It's the ultimate tool for replacing machined metal components on tight deadlines.
Features
- Up to 2x Faster Industrial Production: Driven by the advanced Cheetah motion planner and high-flow print cores, the system cuts production times in half while preserving superior dimensional accuracy.
- UltiMaker TRACE Validation Engine: Automatically tracks and records critical print parameters, including extrusion behaviour and chamber temperatures, straight from the hardware to generate an immediate CAD-validation report for every part.
- Ruggedized Architecture for Harsh Fields: Validated through 15,000 hours of rigorous testing, the newly redesigned gantry architecture absorbs structural vibration at high print speeds, making it reliable for remote or forward operating environments.
- Actively Heated Build Chamber: Features a triple-insulated build volume actively controlled up to 70 °C, ensuring optimal material-specific processing and preventing part warping or layer delamination.
- Integrated Automated Material Handling: Low-maintenance internal climate chamber stores up to 6 kilograms of filament across 6 automated bays, keeping relative humidity below 15% to maintain optimal material conditions.
Technical Specifications
Dimensions
- Build Volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
- Assembled Dimensions: 695 x 605 x 1287 mm (27.5 x 24 x 51 inches)
- Print Technology: Fused Deposition Modeling (FDM)
- Compatible Filament Diameter: 2.85 mm
- Weight: 120 kg (265 lbs)
- Maximum Power Output: 600 W
Printer Properties
- Layer Resolution: 60-400 microns (depending on print core nozzle size and selected print profile)
- XYZ Resolution: 6.25, 7.8, 2.5 microns
- Feeder Type: Dual-extrusion, direct drive print head and swappable print cores
- Display: 7 inches interactive touchscreen (resolution 1024 x 600 px)
- Print Core Replacement: UltiMaker quick-swap print cores
- Print Head: Dual extrusion direct-drive print head with an auto-nozzle lifting system, resonance frequency input shaping, and flood detection
- Maximum Extrusion Flow: Up to 34 mm³/s
- Max XY Speed/Acceleration: Up to 125 mm/s / up to 30,000 mm/s²
- Monitoring: Full HD HDR camera for high-resolution remote monitoring
Operation Parameters
- Filter Technology: Replaceable HEPA H13 filter
- Nozzle Temperature: 180 - 340°C
- Build Plate: PEI-coated flexible steel build plate (heated up to 120 °C)
- Operating Ambient Temperature: 18 - 30°C (64 - 86°F) , Humidity: 30 - 70% RH
- Non-Operating Temperature: 5° - 40°C (41 - 104°F) , Humidity: 20 - 90% RH
Ecosystem
- Supplied Free Software: UltiMaker Cura - print preparation software UltiMaker Digital Factory - printer management software
- Supported OS: MacOS, Windows, and Linux
- Plugin Integration: SOLIDWORKS, Siemens NX, Autodesk Inventor
- Supported File Types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE. gz, UFP
- File Transfer: Wi-Fi (2.4 and 5 GHz), Ethernet, USB
Why Choose the UltiMaker Factor 4+?
Investing in the UltiMaker Factor 4+ introduces true industrial resilience, accelerated throughput, and complete compliance verification to your operation. Here is why it stands out as a premier manufacturing asset:
- True Production Speed: The combination of high-flow extrusion and smooth motion planning delivers up to double to operational throughput without sacrifice to fine part details or dimensional tolerance.
- Uncompromising Traceability: The TRACE system bridges the gap between desktop convenience and industrial compliance, automatically proving part quality right off the build plate.
- Defense-Grade Resilience: Built with data security options (air-gapped USB workflows) and a rugged frame meant to perform consistently on field deployments, oil installations, or busy factory floors.
- Open Material Architecture: Leverages an expansive material ecosystem to substitute heavy, low-load steel and aluminum parts with lightweight, high-performance composite alternatives.
