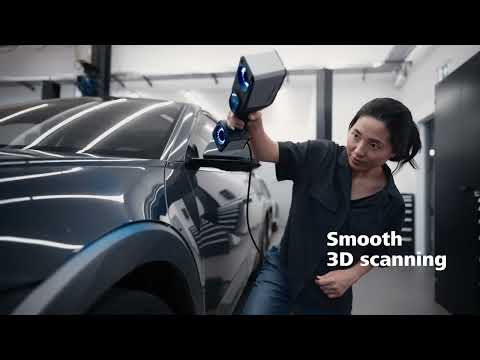

The portable T-SCAN Hawk 2 by ZEISS is a lightweight 3D laser scanner with metrology-grade precision and remarkable ease of use. No matter what the job is, or where it is, the T-SCAN Hawk 2 can get it done.
Features
-
Your perfect working distance: Control your working distance with a new projection mode - a red laser marker helps you to easily adjust for perfect scanning results.
-
A solution that adapts to your workflow: The T-SCAN Hawk 2 is intuitive to operate and adapts easily to the movement of your hand.
-
Go big with the new satellite mode: This is the first portable laser scanner with the new satellite mode to scan up to multiple meters. No need for the classical built-in photogrammetry with coded markers.
-
GOM Inspect - The all-in-one software for 3D inspection: The T-SCAN Hawk 2 operates with GOM Inspect, the well-established standard in 3D metrology and part of the ZEISS Quality Suite
-
Operate with the push of a button: The scanner features 4 buttons to start and navigate your workflow directly. No need to operate the software separately on your laptop.
-
Switching between different tasks: The T-SCAN Hawk 2 features seamless adjustments for resolution and field of view. Whether small parts, fine details, larger objects or deep pockets, confined spaces, or hard-to-reach areas, this 3D laser scanner does the job.
-
Strong on dark and shiny surfaces: The scanner supports scanning on a wide range of materials and surfaces, delivering 3D measurement data with the highest precision.
Technical Data
High-speed scanning - Included (multiple blue laser crosses)
Deep pockets - Included (single blue laser line)
Flexible depth of field - Included (on-object distance radar)
Detailed scan - Included
One-shot sensor calibration - Included (Hyperscale)
Large parts - Included (Satellite mode, no coded markers required)
Carbon-fibre lengths standards - Certified (DAkks / ILAC)
Volumetric accuracy - 0.02 mm + 0.015 mm/m
Laser class (IEC 60825-1:2014) - Class 2 (eye-safe)
Weight - < 1 kg
Cable - 10m (ultra-light)
Software - ZEISS Quality Suite / GOM Inspect
Full remote workflow - Supported
Applications
Maintenance
- 3D inspection of dents, corrosion, and damage
- 3D scanning and remanufacturing of legacy parts
- Indoor and outdoor, in rugged and harsh environments
- Wear monitoring
Reverse engineering
- From shape to CAD
- Archiving tools and cultural heritage
- Everything from small details to very large repairing of parts
Quality Control
- Actual comparison with CAD
- Functional dimensioning
- Shop floor inspection
- Reducing the number of iterations in your process
Design
- Digitize complex shapes and physical objects
- Design modification
- Interior design
- 3D visualization
Industries
- Automotive, shipping, railway, and aerospace
- Energy generation, oil and gas industry
- Agriculture, forestry and mining
- Heavy industry, mold and machine manufacturing
