Markforged

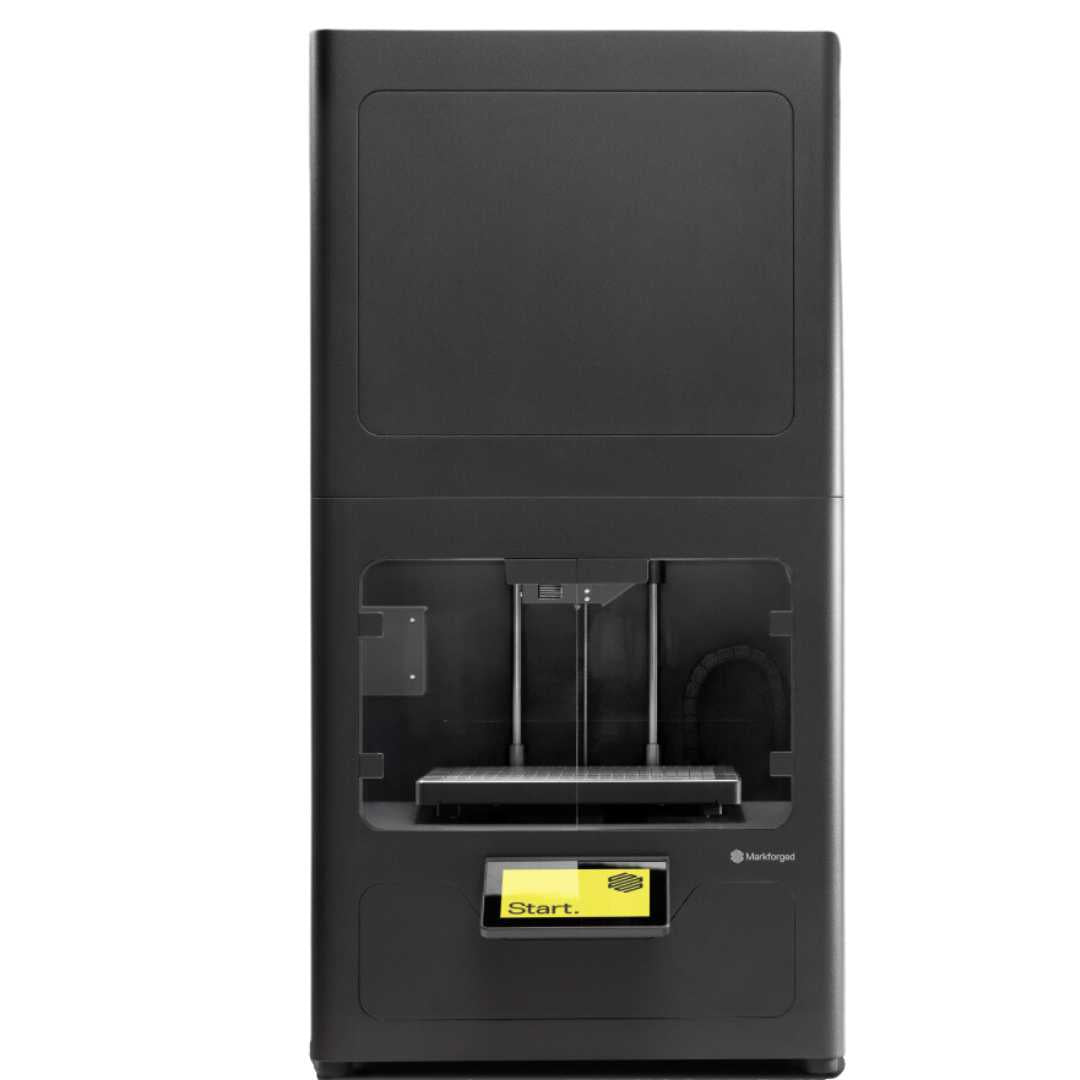

Markforged Metal X 3D Printer (Gen 2)
The Markforged Metal X is one of the most intuitive and advanced metal 3D printers today. Designed for ease of use, it allows users to print a wide range of materials, from stainless steel to copper, with minimal training. The closed workflow ensures a seamless and efficient printing process, making it an ideal choice for both beginners and experienced users.
Material
The Metal X supports a variety of strong, durable, and capable materials, including:
- Stainless Steel: Ideal for applications requiring high strength and corrosion resistance.
- Copper: Perfect for applications needing excellent thermal and electrical conductivity.
- Tool Steels: Suitable for manufacturing tools and dies with high hardness and wear resistance.
- Inconel: Great for high-temperature applications due to its excellent heat resistance.
Key Features
- Intuitive User Interface: The Metal X features a user-friendly interface that simplifies the printing process. Users can easily set up prints, monitor progress, and make adjustments as needed.
- Closed Workflow: The closed workflow of the Metal X ensures that the entire printing process, from design to final part, is streamlined and efficient. This reduces the potential for errors and increases overall productivity.
- Scalability: Scaling up production capacity with the Metal X is straightforward. Simply add more printers to your setup to increase output without significant additional training or setup time.
- Bundle Options: The Metal X is available in various bundles, including the Sinter-1 and Sinter-2 models. These bundles provide everything needed to start printing high-quality metal parts, including sintering furnaces for post-processing.
Technical Specifications
Printer Properties
- Process: Atomic Diffusion Additive Manufacturing (ADAM)
- Build Volume: 300 x 220 x 180 mm (11.8 x 8.7 x 7.1 in)
- Machine Size: 575 x 467 x 1,120 mm (22.7 x 18.4 x 44.1 in), 75 kg (160 lbs)
- Print Chamber: Heated
- Print Bed: Heated, vacuum-sealed print sheet, auto bed leveling
- Print System: Two nozzles - Metal material and release material
- Power Requirements: 100-120 / 200-240 VAC (12A / 6A), IEC 60320 type C20
Materials
-
Metal Material: Stainless steel (17-4 PH, 316L*), Tool steel (H13, A2, D2), Inconel
625, Copper, Titanium-6Al-4V* - Release Material: Ceramic (consumed at 1:10 ratio to metal spools, on average)
- Media (Spools): Filament fed, bound powder
Part Properties
- Max Part Size: 250 x 183 x 150 mm (9.8 x 7.2 x 5.9 in), 10kg
- Supports: Metal material with ceramic release layer
- Layer Height: 50µm and 125µm post-sinter
Software
- Supplied Software: Eiger Cloud (Other options available at cost)
- Security: Two-factor authentication, org admin access, single sign-on
Benefits
- Ease of Use: With its intuitive design and minimal training requirements, the Metal X is accessible to users of all skill levels.
- High-Quality Parts: The Metal X produces parts with excellent mechanical properties, making it suitable for a wide range of industrial applications.
- Cost-Effective: By enabling in-house production of metal parts, the Metal X helps reduce costs associated with outsourcing and traditional manufacturing methods.
- Flexibility: The ability to print with a variety of materials allows for greater flexibility in design and application.
Why Choose the Metal X?
The Markforged Metal X stands out as a top choice for metal 3D printing due to its combination of ease of use, versatility, and scalability. Whether you are looking to produce high-strength parts for industrial applications or need a reliable solution for prototyping, the Metal X delivers exceptional performance and reliability. With the Metal X, you can achieve high-quality metal 3D printing that meets the demands of modern manufacturing.
By incorporating these features and benefits, the Metal X not only meets but exceeds the expectations of a metal 3D printer, making it a valuable addition to any manufacturing setup.
