Artec

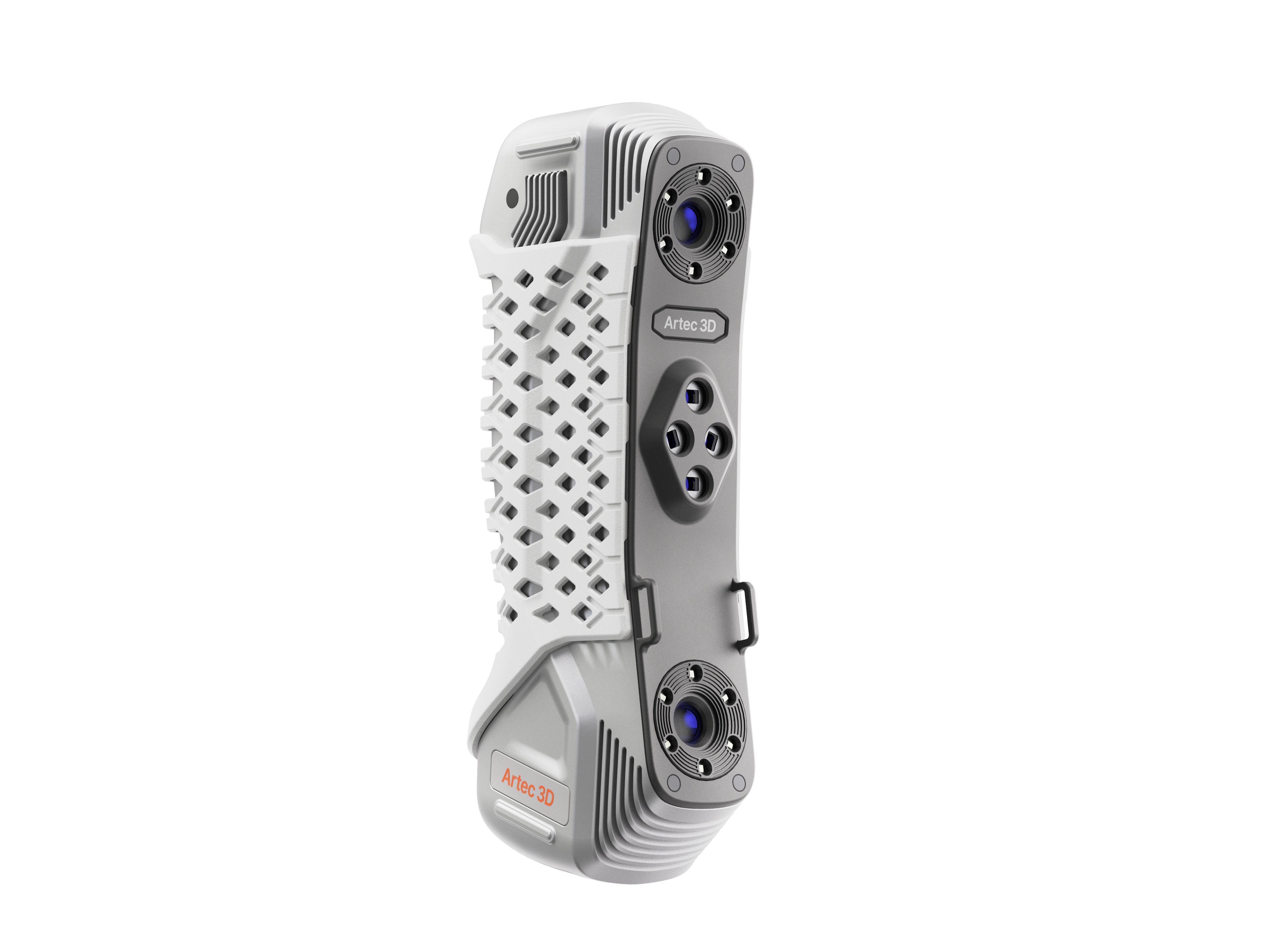

Artec Point Handheld 3D Scanner
Metrology-Grade Handheld Laser 3D Scanner for Precise Measurements
Artec's debut target-based 3D laser scanner brings ISO-certified, metrology-grade precision right to your hands. The Artec Point quickly captures complex surfaces - including those with black or shiny finishes - with up to 0.02 mm accuracy, making it ideal for quality control and reverse engineering.
Switch effortlessly between grid, parallel, and single-laser modes to optimize results. HD cameras positioned at a steep angle, ensure detailed capture in tight spaces. With its lightweight yet sturdy metal chassis, the Artec Point is well-suited for demanding industrial settings.
For capturing intricate objects with exceptional repeatability and accuracy, the Artec Point delivers every time, offering a fast and reliable solution wherever high-quality data is essential.
Features
Consistently Precise Models - Every Time: With exceptional accuracy, reliable tracking and specialized mode for intricate geometries, the Artec Point 3D scanner delivers high-resolution metrology data you can trust.
- Metrology-Grade Precision: The Artec Point captures complex surfaces with outstanding accuracy and repeatability, providing top-quality data for industrial metrology.
- User-Friendly Operation: Most of the Artec Point's primary functions are controlled via four easily accessible, customizable buttons for enhanced workflow efficiency.
- Reliable Tracking: Scan at speeds up to 120 FPS, ensuring consistent tracking with no data gaps, making the Artec Point simple to use.
- Versatile Modes: Choose from 3 modes - high-speed grid, parallel lasers for detailed geometries, and single laser for hard-to-reach areas such as deep holes - to achieve the best result.
- Detailed Magnification: Zoom in up to 8x to capture fine details, ensuring thorough scan coverage and revealing nuances that might otherwise be missed.
- Extensive Field of View: The Artec Point features a broad scanning area, enabling efficient capture of larger objects while maintaining a clear view of targets for seamless, high-speed 3D scanning.
Ideal for Precision Metrology 3D Scanning: The Artec Point offers ISO and VDI/VDE-certified accuracy and repeatability, making it a reliable choice for advanced metrology applications with instant, dependable results.
- Exceptional Repeatability: Its intuitive interface and steadfast tracking ensure consistent results regardless of operator skill, without the need for extensive adjustments.
- Accessible Scanning: With its lightweight frame and ergonomic design, the Artec Point is easily handled with one hand and can be maneuvered to scan tight or hard-to-reach spaces.
- Durable Construction: Encased in sturdy metal housing, the Artec Point is built to withstand the rigors of industrial metrology environments, ensuring long-lasting performance.
Technical Specifications
Scanner Type: Handheld
3D Light Source: Blue laser, class II (eye-safe)
3D Point Accuracy, up to: 0.02 mm (0.0008 in)
Volumetric Accuracy, up to: 0.015 mm + 0.035 mm/m (0.0006 in + 0.0014 in/ft)
0.015 mm + 0.015 mm/m with Artec Metrology Kit
Weight: 570 grams (20.1 oz)
Scanning Rate, up to: 2.8 million measurements/s
Capture Rate, up to: 120 FPS
Scanning Area: 700 x 600 mm (27.6 x 23.6 in)
Depth of Field: 550 mm (21.7 in)
Size of Scanning Object/Area: S-L
Certification: ISO 17025 accredited based on VDI/VDE 2634 & JJF 1951
