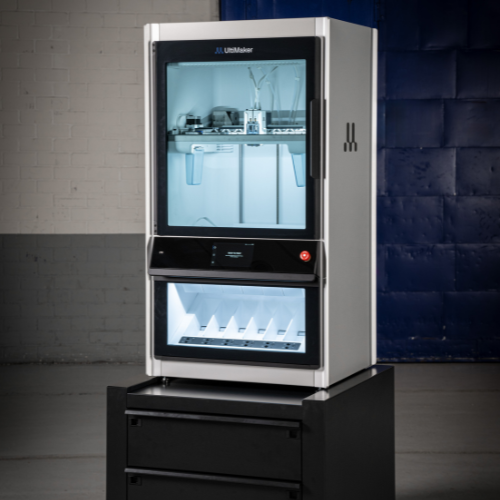

Ultimaker Factor 4 3D Printer

UltiMaker Factor 4 is an end-to-end application solution tailored for the development, production, and confident deployment of process-critical tools and machine components. Factor 4 keeps operations running smoothly, simplifies factory processes, and reduces human-triggered variabilities. It streamlines factory floor operations with its large effective build volume, direct dual material extrusion, and onboard print process reporting, achieving unrivaled predictability and minimal variance.

Target Applications

• Small batches of auxiliary components
• Manufacturing Aids including jigs, fixtures, and assembly tools
• Durable spare, bridge, and service parts for real working conditions
• Functional engineering prototypes

Technical Specifications

Dimensions

• Build Volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
• Assembled Dimensions: 695 x 605 x 1287 mm (27.5 x 24 x 51 inches)
• Print Technology: Fused Deposition Modeling (FDM)
• Compatible Filament Diameter: 2.85 mm
• Weight: 120 kg (265 lbs)
• Maximum Power Output: 600 W

Printer Properties

• Layer Resolution: 60-400 microns (depending on print core nozzle size and selected print profile)
• XYZ Resolution: 6.25, 7.8, 2.5 microns
• Feeder Type: Dual-extrusion, direct drive print head and swappable print cores
• Display: 7 inches interactive touchscreen (resolution 1024 x 600 px)
• Print Core Replacement: Swappable print cores
• Print Head: Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.
• Nozzle Diameters: 0.25 mm, 0.4 mm, 0.8 mm

Operation Parameters

• Filter Technology: Replaceable HEPA H13 filter
• Nozzle Temperature: 180 - 340°C
• Build Plate: PEI-coated flexible steel build plate
• Operating Ambient Temperature: 18 - 30°C (64 - 86°F) , Humidity: 30 - 70% RH
• Non-Operating Temperature: 5° - 40°C (41 - 104°F) , Humidity: 20 - 90% RH

Ecosystem

• Supplied Free Software: UltiMaker Cura - print preparation software UltiMaker Digital Factory - printer management software
• Supported OS: MacOS, Windows, and Linux
• Plugin Integration: SolidWorks, Siemens NX, Autodesk Inventor
• Supported File Types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE. gz, UFP
• File Transfer: Wi-Fi (2.4 and 5 GHz), Ethernet, USB

Safety and Compliance

• More Information:Learn more about UltiMaker Factor 4 safety and compliance.
• Safety Features: Red Stop Button for motion & heat sources immediate stop Open Door Sensor for motion and extrusion pausing.
• Warranty Period: 12 months Limited Warranty

New Hardware Features

• Dual Extrusion Direct Drive Print Head: Ensures precise and reliable dual-material printing.
• Actively Controlled Build Volume Temperature: Maintains optimal conditions for consistent prints.
• Effective Build Volume: 330 x 240 mm in XY for larger projects.
• Automated Material Handling System: Low relative humidity storage for optimal material conditions.

Materials

• 14+ UltiMaker Materials: With NFC recognition for easy material management.
• Widest Choice of 200+ Profiled Materials: Available on UltiMaker Marketplace, including flexible, low Shore A thermoplastic elastomers, composites, mid-high temperature polymers, and stainless steel.

Software

• Powered by UltiMaker Cura: Industry-leading print preparation software.
• UltiMaker Digital Factory: For secure printer management, file storage, and analytics.
• Onboard Print Process Reporting: For part validation and structural integrity verification.
• Integration with Industry-Leading Software: Compatible with solutions like SolidWorks.

Why Choose the UltiMaker Factor 4?

Choosing the UltiMaker Factor 4 means investing in a 3D printing solution that offers industrial-grade performance and reliable, repeatable results. Here's why it stands out:

• End-to-End Solution: Tailored for the entire lifecycle of process-critical tools and components.
• Enhanced Efficiency: Streamlines factory operations and reduces human error.
• Versatile Applications: Suitable for a wide range of manufacturing and engineering needs.
• Advanced Features: Includes dual extrusion, automated material handing, and precise temperature control for optimal performance.
