Formlabs

Form 4B Premium Medical Package

Name: Form 4B Premium Medical Package
Brand: Formlabs
SKU: PKG-F4B-WSVC-MSP-PREMIUM
Price: 16616.06 CAD
Availability: InStock

PKG-F4B-WSVC-MSP-PREMIUM

Biocompatible, High-Speed 3D Printing for Healthcare & Medical Applications

The Formlabs Form 4B Premium Medical Package is designed to maximize productivity with multiple accessories and faster curing to ensure efficiency across your workflow. It's a fully equipped solution for professionals in healthcare, medical device manufacturing, research and similar fields who need fast, precise, and biocompatible 3D printing. Featuring the next generation of Formlabs' proven SLA technology, the Form 4B delivers quality you can trust when it matters the most, allowing you to effortlessly create parts for any medical application.

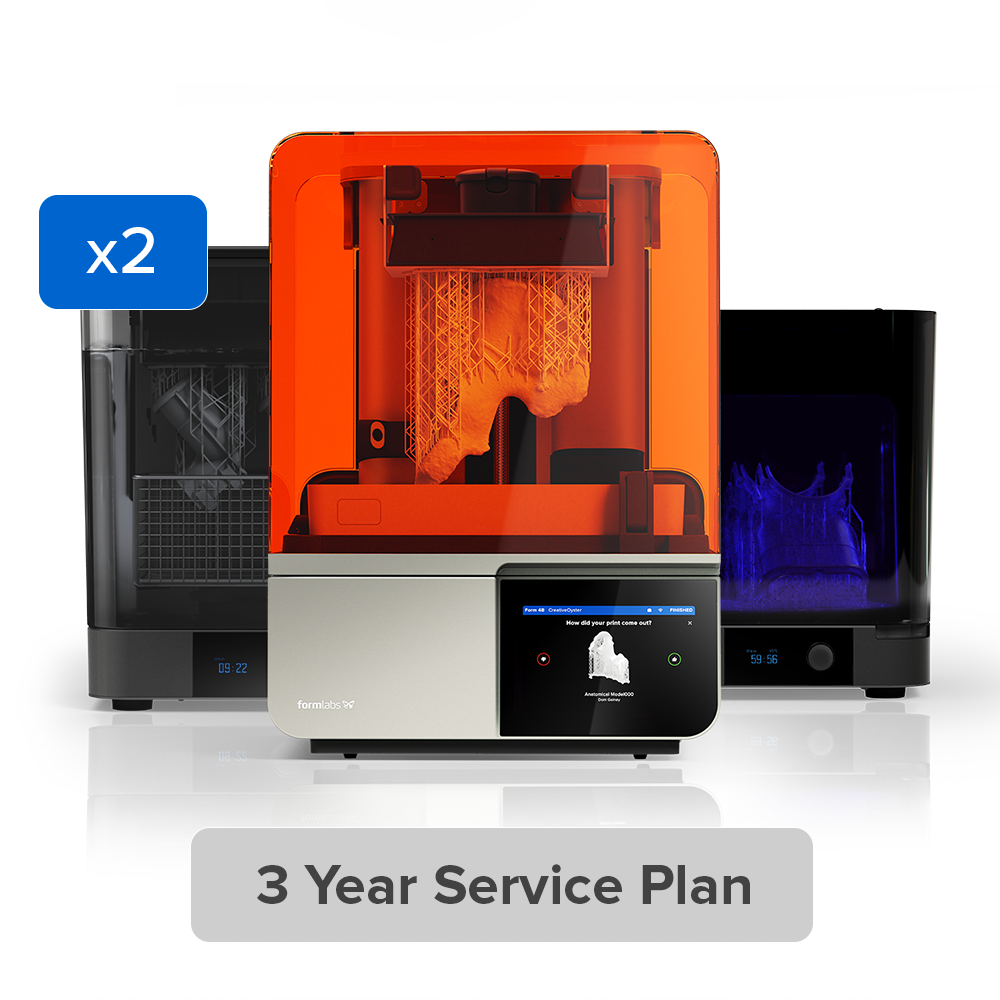

What's Included in the Form 4B Premium Medical Package?

Form 4B 3D Printer
Form 4 Build Platform Flex
Form 4 Resin Tank
Form 4 Finish Kit
Form 4 Mixer
Form Wash V2
Solvent Pump
Form Cure V2
Dental and Medical Service Plan 1 Year

Why Choose the Formlabs Form 4B?

Medical-Grade Printing - Validated for biocompatible and sterilizable resins.
Unmatched Speed & Accuracy - Print up to 5x faster than previous models while maintaining precision.
Seamless Workflow - Intuitive software and easy post-processing for consistent, high-quality results.
Scalable for Clinics & Labs - Reliable and repeatable for patient-specific and production applications.
Certified & Compliant - Supports FDA-registered materials and ISO 13485-certified workflows.

Ideal Applications:

Surgical Guides
Orthotics & Prosthetics
Medical Device Prototyping
Custom Medical Tools & Equipment
Anatomical Models for Surgical Planning

Upgrade your 3D printing workflow with the Form 4B Premium Medical Package today!

Tech Specs

Category	Specification
Technology	Masked Stereolithography (MSLA)
Printer Engine	Low Force Display® (LFD)
Key Components of the Print Engine	Backlight Unit Light Processing Unit 4 (LPU 4) Release Texture Flexible Film Resin Tank Intelligent Control Systems High-Speed Automatic Resin Handling
Light Source	Backlight Unit: 60 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling 405 nm optical wavelength 16 mW/cm² optical power intensity delivered to the cure plane 50 µm pixel size
Maximum Print Speed	100 mm/hour 3.9 in/hour
Typical Print Speed²	Average: 40 mm/hour (1.6 in/hour) across all materials Range: 16-50 mm/hour (0.6-2.0 in/hour) depending on the material
Typical Dimensional Tolerances³	1-30 mm features: ±0.15% (lower limit: ±0.02 mm) 31-80 mm features: ±0.2% (lower limit: ±0.06 mm) 81-150 mm features: ±0.3% (lower limit: ±0.15 mm)
Surface Accuracy (Restorative Models)⁴	On average with Precision Model Resin: 99.7% of surfaces within 100 µm of CAD model 95% of surfaces within 50 µm of CAD model 69% of surfaces within 25 µm of CAD model
Reliability	98.7%, measured by an independent third-party lab in a series of comprehensive performance tests. Learn More
Materials	38 industry-leading Formlabs materials, including 15 biocompatible, or third-party materials using Open Material Mode. More exciting new materials are currently in development. Explore Materials
Biocompatible Materials	Yes
Build Volume (W x D x H)⁵	20.0 x 12.5 x 21.0 cm 7.9 x 4.9 x 8.3 in 5.25 liters
Build Area	250 cm² 38.8 in²
Maximum Part Length⁶	27.3 cm 10.7 in
XY Resolution⁷	50 µm with pre-tuned anti-aliasing for subpixel resolution Superior fine feature performance and sharp features compared to the Form 3 Series
Layer Thickness⁸	25-200 µm 0.001-0.008 in
Resin Cartridges	1
Resin Cartridge Type	Next-generation resin cartridge 5-10x faster filling 63% less waste 30% less shelf space
Resin Heating	High speed conduction resin heating with infrared temperature sensing
Internal Temperature	Auto-heats resin to 25-45°C (77-113°F), depending on material
Force Sensing	Z-Axis Force Sensor: automatically optimizes print quality and print speed based on part geometry and selected material.
Supports	Auto-generated Light-touch removal
Design/CAD Specifications	View Design Guide
Printer Dimensions (W x D x H)	39.8 x 36.7 x 55. 4 cm 15.7 x 14.5 x 21.9 in
Minimum Access Dimensions (W x D x H)	40.7 x 47.8 x 84. 4 cm 16.0 x 18.8 x 33.2 in
Printer Weight	18.3 kg 40. 4 lb
Operating Environment	18-28°C 64-82°F
Power Requirements	100-240 VAC 4.8 A 50/60 Hz 480 W
Connectivity	Wi-Fi (2. 4 and 5 GHz; IEEE 802.11 b/g/n/ac, WPA/WPA2) Ethernet (1000 Mbit) USB-C 2.0
Printer Control	7" interactive touchscreen 1280 x 800 resolution Languages: English, German, French, Spanish, Italian, Japanese, Simplified Chinese
Alerts	Touchscreen alerts SMS/email via Dashboard Speaker for audio alerts
Sensors and Control Systems	6 upgraded sensors that precisely control resin temperature, resin level, print forces, and print status: - High-speed conduction resin heating with infrared temperature sensing - Ultrasonic Resin Level Sense: controls resin in the tank - Z-Axis Force Sensor: controls and minimizes print forces - Resin Cartridge Load Cell: measures exact resin level in cartridge - Printer Leveling Sensor - Camera
Camera	Integrated camera 2592 x 1944 resolution (5MP) Remote monitoring, print history, and print timelapses Can be easily disabled, covered, or removed
Software	PreForm, Dashboard, Fleet Control
PreForm System Requirements	Windows 7 (64-bit only, ARM not supported) and up Mac OS X 10.15 and up OpenGL 2.1 C ++ runtime library from Microsoft (Windows only) 4 GB RAM (8 GB recommended)
PreForm File Types	STL, OBJ, and 3MF file input FORM file output
PreForm Print Setup Features	One-Click Print Adaptive layer thickness for faster printing with fine details Remote Print Auto-orient for optimal print position Auto-mesh repair Auto-generation of supports Advanced tools for manually editing supports Rotate, scale, duplicate, and mirror Layer slicer for path inspection Custom print settings Available in multiple languages
Dashboard Printer Management Features	Manage prints and printers via the cloud Track resin and tank usage over time SMS and email alerts Create enterprise group accounts with admins to more easily share printers and control access
Resin Tank Estimated Lifetime	75,000+ layers with any Formlabs material Example: approximately 340 prints using clear aligner models (22 mm tall), any resin, and 100µm layer height
Light Processing Unit Estimated Lifetime	600,000 - 1,900,000 layers, depending on material and layer height Example: approximately 5,000 prints using diagnostic models (22 mm tall), Grey Resin V5, and 100 µm layer height

¹Using Fast Model Resin and 200 µm layer height on the Form 4 Series. Based on actual print times from a collection of test parts covering common engineering, product design, manufacturing, and dental applications. Using Draft v2 Resin and 200 µm layer height on the Form 3 Series. Based on the 75th percentile actual print speed from reported prints in 2023.
²Average across all materials printed at 100 µm layer height, weighted by material popularity. Print speed will vary depending on the material, layer height, and part geometry. The range is based on the materials with the slowest median print speed and highest median print speed.
³Using Grey Resin V5 and 100 µm layer height, post-cured for 5 minutes at room temperature. One test model with various feature sizes 3D printed on three different printers.
⁴Using 50 µm layer height. Tested using a full arch restorative model with dies, four models per print job, printed on three different printers, and post-processed according to the recommended settings.
⁵If you are printing a job that is taller than 19.0 cm (7.5 in) on Form 4/B, taller than 30.5 cm (12 in)in) on Form 4L/4BL, or taller than 18.5 cm (7.2in) on Form 3/B/+, you have to remove the resin tank while removing your print. PreForm will warn users when their job is above these limits.
⁶Assuming a part printed on supports that resembles a rectangular prism with 12.5 cm depth and 1 cm height.
⁷XY resolution describes how precisely the printer can cure the resin in the XY (horizontal) plane. It corresponds to the pixel size of the Light Processing Unit 4 and Light Processing Unit 4L.
⁸Layer thickness availability varies by material. View our materials compatibility table to confirm availability. ⁹Languages beyond English will come in future firmware releases on the Form 4 Series. ¹⁰The exact lifetime of an individual resin tank depends on layers printed, physical wear, and accidental damage. ¹¹Using 100 µm layer height. The exact lifetime of an individual LPU depends on total light energy passed through the module, which depends on number of layers printed, material, and layer height, as well as accidental damage. When replacement is necessary, anyone can easily and quickly replace the LPU 4 or LPU 4L at a low cost.
