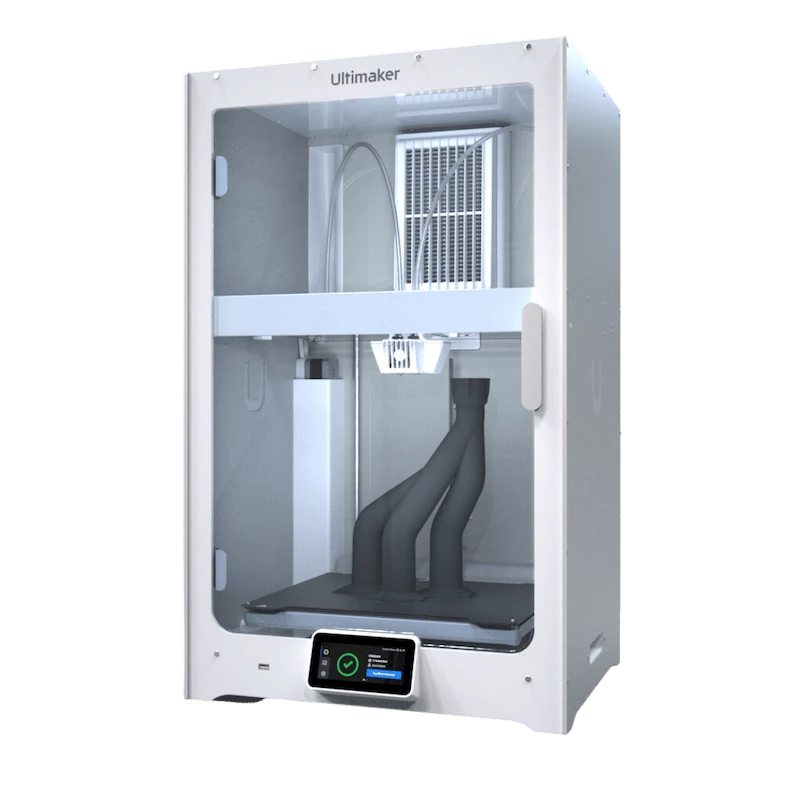

UltiMaker S7 3D Printer
UltiMaker has taken everything users loved about the award-winning UltiMaker S5 and made it even better with the UltiMaker S7. This advanced 3D printer can be trusted to do its job, giving you the freedom to do yours. The inductive sensor-enabled bed leveling of the S7 ensures a perfect first layer, while the integrated air manager maintains the build volume at an optimally regulated temperature. Additionally, run-out and fan bracket sensors will pause your print and notify you if you run out of filament or if there is a clog that causes your print head to flood.
Features
- Easy Setup and Monitoring: Simplifies the printing process from start to finish.
- Access to the UltiMaker Platform: Seamlessly integrated with UltiMaker's ecosystem.
- Environmental Control: Integrated air manager for optimal temperature regulation.
- Advanced Active Leveling: Inductive sensor-enabled bed leveling for perfect first layers.
- Wide Material Choice: Compatible with a variety of materials for versatile printing.
- Large Build Volume: Accommodates larger projects with ease.
- Network Connectivity: Enables remote management and monitoring.
- UltiMaker Essentials: Includes enterprise software for professional use.
- Flexible Build Plate: Ensures easy removal of prints.
What's Included
- UltiMaker S7 3D Printer
- 3 Print Cores Included
- 750gr. Spool of Tough PLA and 750gr Spool of PVA Dissolvable Support
- USB key, glue stick, grease, hex wrenches, cables
- Cura, UltiMaker's award-winning print preparation software
- Powerful UltiMaker app
- Comprehensive 12-month warranty
Technical Specifications
Dimensions
- Build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
- Assembled dimensions: W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches)
- Print technology: Fused Deposition Modeling (FDM)
- Compatible filament diameter: 2.85 mm
- Weight: 29.1 kg (64.2 lbs)
- Maximum power output: 500 W
Printer Properties
- Layer resolution: 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron
- XYZ resolution: 6.9, 6.9, 2.5 micron
- Feeder type: Dual-geared feeder, reinforced for composite materials
- Display: 4.7-inch (11.9 cm) color touchscreen
- Print core replacement: Swappable print cores
- Print head: Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.
- Nozzle diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Operation Parameters
- Filter technology: Replaceable EPA filter
- Air extraction rate: 1 - 50 m³/h (35 m³/h nominal rate for most materials at 23 °C)
- Nozzle temperature: 180 - 280 °C
- Nozzle heat-up time: < 2 minutes
- Operating sound: < 51 dBA
- Build plate leveling: Advanced active leveling with more accurate inductive sensors
- Build plate: PEI-coated flexible steel build plate
- Build plate heat-up time: < 5 minutes (from 20 to 60 °C)
- Operating ambient temperature: 15 - 32 °C (59 - 90 °F)
- Non-operating temperature: 0 - 32 °C (32 - 90 °F)
Ecosystem
- Supplied free software: UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools
- Supported OS: MacOS, Windows, and Linux
- Plugin integration: SolidWorks, Siemens NX, Autodesk Inventor
- Supported file types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP
- File transfer: Wi-Fi (2.4 and 5 GHz), Ethernet, USB
Safety and Compliance
- Certification: CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
- More information: Learn more about UltiMaker S7 safety and compliance.
Software
UltiMaker Essentials provides the tools you need to start 3D printing at work while meeting IT requirements. Features include remote printer management, firmware firewalls, verified plugins, and direct software support. Learn more by watching this short video.
Enjoy unending access to enterprise software with UltiMaker Essentials.
Why Choose the UltiMaker S7
Choosing the UltiMaker S7 means investing in a 3D printer that combines reliability, advanced features, and ease of use. Here's why it stands out:
- Enhanced Reliability: Trust the S7 to deliver consistent, high-quality prints.
- User-Friendly Design: Easy setup and monitoring make it accessible for all users.
- Advanced Technology: Features like active leveling and environmental control ensure optimal performance.
- Versatile Material Compatibility: Print with a wide range of materials for diverse applications.
- Comprehensive Support: Benefit from UltiMaker Essentials, which includes remote management and direct software support.
