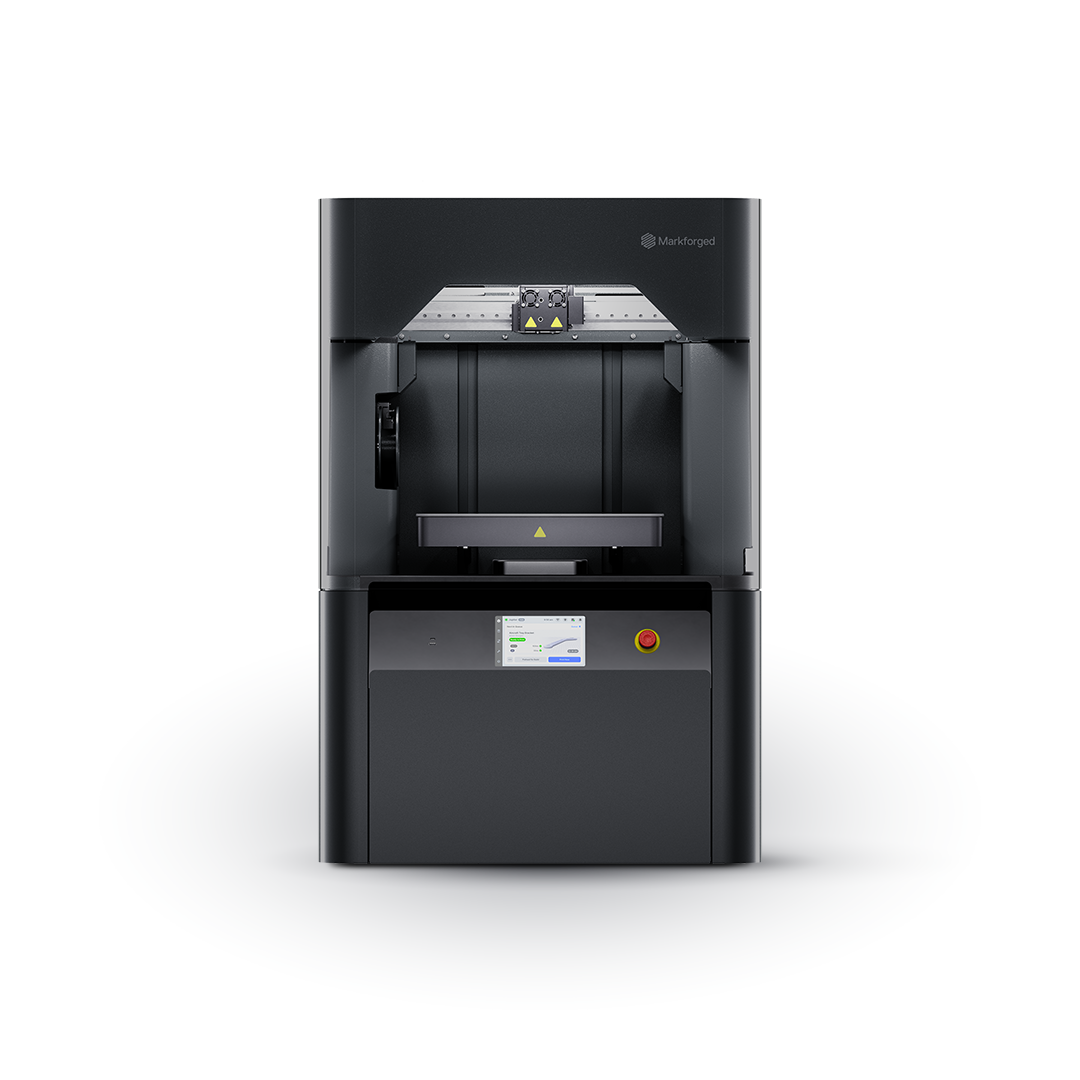

Markforged FX10
The FX10 is the latest innovation in the Markforged 3D printer lineup, representing years of engineering excellence. This advanced 3D printer is designed to deliver strong, accurate parts consistently, making it a valuable addition to any manufacturing setup.
Unmatched Precision and Reliability
The FX10 is equipped with Simulation and Inspection software, ensuring that every part produced meets stringent factory floor requirements. This capability allows businesses to start generating a return on investment (ROI) from day one. The FX10s scalability means it can easily be integrated into more teams, machines, and facilities, enhancing productivity across the board.
Key Features
- Vision Module and Laser Micrometer: The FX10 is equipped with two print head-mounted optical sensors. The laser micrometer enables in-print dimensional validation and machine calibration, while the Vision Module captures detailed images of calibration parts to optimize printer performance.
- Advanced Material Chamber: This inboard material chamber can store four spools in individually sealed compartments. It supports automatic material changeover and fast spool loading, significantly reducing user intervention and downtime.
- Large Touchscreen: The FX10 features a 7-inch touchscreen that allows users to start builds, monitor machine status, manually control the machine, and initiate automated calibration routines - all from a single interface.
- Heated Build Chamber and Vacuum Bed: The FX10's large build chamber heats up to 60°C, which is ideal for printing high-quality parts quickly. The aluminum vacuum bed is also heated and features precision-machined grooves that are scanned by the laser micrometer for accurate calibration.
Technical Specifications
FX10 Composite
Printer Properties
- Process: Composite Fused Filament Fabrication, Continuous Fiber Reinforcement
- Build Volume: 375 x 300 x 300 mm (14.8 x 11.8 x 11.8 in)
- Weight: 122 kg (270 lbs)
- Machine Footprint: 760 x 640 x 1200 mm (30 x 25 x 46 in)
- Temperature Control: Heated chamber reaches up to 60°C ready-state
-
Print System: Direct-drive print head with two nozzles (one plastic, one fiber), automatic material changeover
-
Power: 100-120 VAC 12A /15A
200-240 VAC 6A / 8A -
Safety: UL 2011/CSA C22.2#301 certified, CE Marked,
EU Machinery Directive compliant
Materials
- Plastics: Onyx®, Onyx FR, Onyx ESD, Nylon White, Nylon White FS
- Continuous Fibers: Carbon Fiber, Carbon Fiber FR
Part Properties
- Layer Height: 125 μm minimum, 250 µm maximum
Software
- Eiger: Secure digital library, powerful slicer, and printer management (premium options available at cost)
- Inspection: Laser micrometer and vision module scan parts for accuracy
- Security: Two-factor authentication, org admin access, single sign-on, MFP print files encrypted by default and tamper-resistant
- Connectivity: Eiger connection and over-the-air updates via wi-fi and Ethernet
FX10 Metal
Metal Printer Properties
- Process: Metal Fused Filament Fabrication
- Build Volume: 375 x 300 x 300 mm (14.8 x 11.8 x 11.8 in)
- Weight: 122 kg (270 lbs)
- Machine Footprint: 760 x 640 x 1200 mm (30 x 25 x 46 in)
- Temperature Control: Heated chamber reaches up to 60°C steady-state
- Print System: Swappable metal print engine includes metal print head, material routing block, and material tubing. Automatic material changeover
-
Power: 100-120 VAC 12A /15A
200-240 VAC 6A / 8A -
Safety: UL 2011/CSA C22.2#301 certified, CE Marked,
EU Machinery Directive compliant
Materials
- Metals: 17-4PH Stainless Steel, 316L Stainless Steel (coming soon)
Part Properties
- Layer Height: 127 μm post-sinter
- Maximum Part Size: 292 x 132 x 131mm, (11.5 x 5.2 x 5.15 in), 10kg
Software
- Eiger: Secure digital library, powerful slicer, and printer management (premium options available at cost)
- Security: Two-factor authentication, org admin access, single sign-on, MFP print files encrypted by default and tamper resistant
- Connectivity: Eiger connection and over-the-air updates via wi-fi and Ethernet
Why Choose the FX10?
The FX10 stands out in the market due to its combination of advanced features and user-friendly design. Its ability to produce verified parts that meet high standards makes it an excellent choice for manufacturers looking to improve efficiency and product quality. With the FX10, you can achieve reliable, high-performance 3D printing that scales with your business needs.
By incorporating these features and benefits, the FX10 not only meets but exceeds the demands of modern manufacturing environments. Whether you're looking to enhance your current production capabilities or expand into new areas, the FX10 offers the tools and technology to help you succeed.
