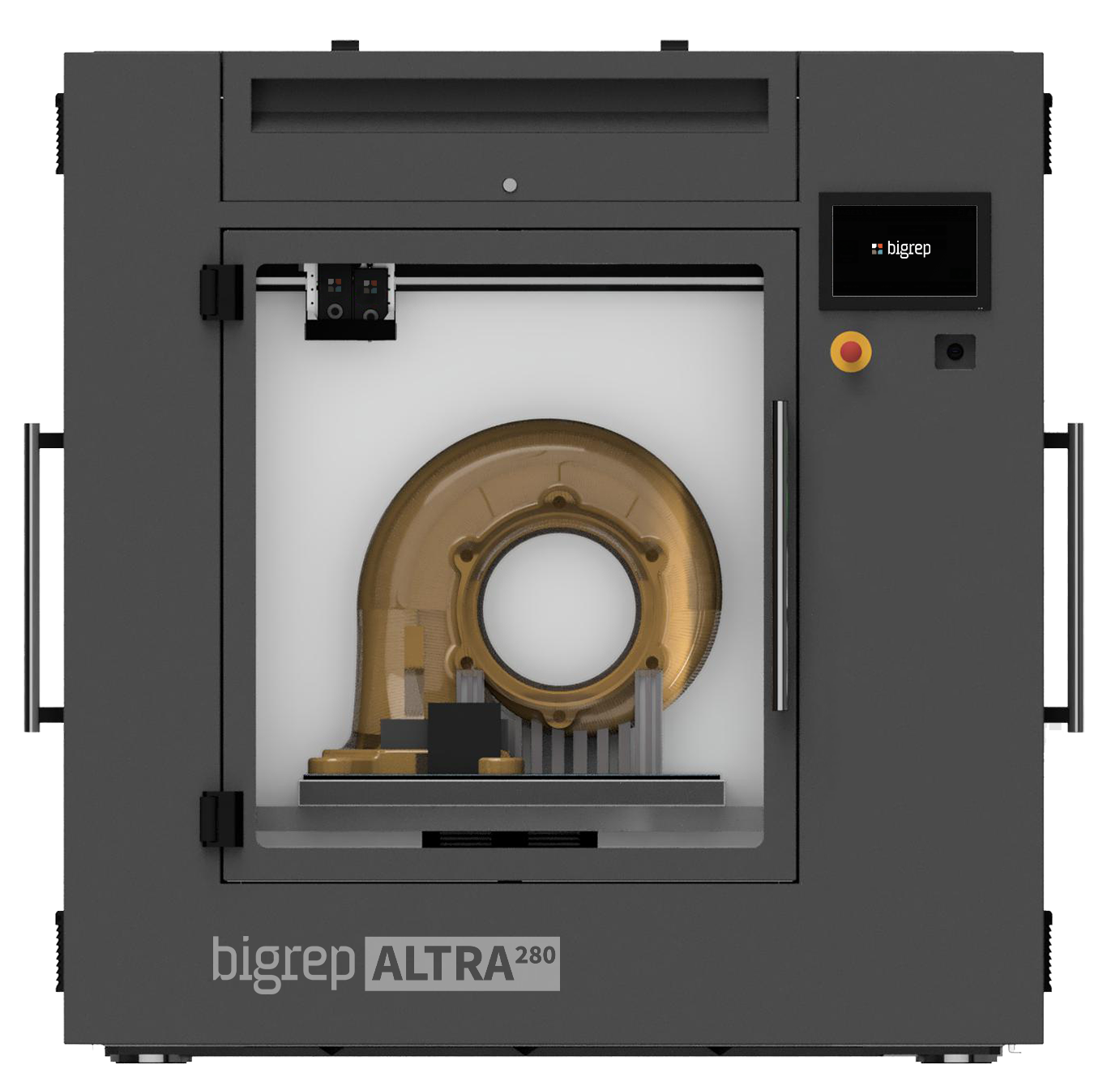

The ALTRA 280 is the ultimate high-performance industrial 3D printer, designed to meet the most demanding applications across various industries, including automotive, aerospace, and defence. This powerhouse machine boasts an expansive build volume and delivers unrivaled reliability with up to four state-of-the-art DSX extruders. These controlled dual extruders, along with their respective backups, are groundbreaking in additive manufacturing, ensuring flawless prints every time. The high-temperature capabilities of the ALTRA 280 enable peak-level 3D printing, making it a versatile and indispensable tool for industrial engineers and designers.
Key Features
-
Accuracy in Large Scale: With a build volume of 280 liters, the ALTRA 280 is capable of producing intricate full-fledged prototypes, production parts, and end-use components. The machine's welded frame, ball screws, and servo motors, similar to those found in CNC technology, ensure the accuracy and repeatability expected from an industrial-grade 3D printer.
-
Up to 4 DSX Extruders: The ALTRA 280 is equipped with up to four DSX extruders, each capable of printing at temperatures up to 450°C and handling up to 20kg of material in one cycle. The dual extruders, along with their backup counterparts, allow for the creation of complex parts and ensure seamless production. Each DSX extruder features integrated cooling channels and multiple sensors for precise monitoring and control.
-
Fully Automated Quick Start: The ALTRA 280 simplifies the printing process with automatic functions such as bed calibration, topology measurement, and automatic compensation. Built-in sensors ensure 24/7 operation, while a camera enables real-time remote monitoring, ensuring you never miss a thing.
-
Even Temperature Distribution: Consistent temperature is crucial for achieving excellent prints and high-performance parts. The ALTRA 280's print bed and build chamber can reach temperatures up to 180°C, maintaining uniform heat distribution. The airflow control system precisely tempers the prints, resulting in enhanced and consistent mechanical properties.
Technical Specifications
Version: BigRep ALTRA 280
Build Volume: 500 mm x 700 mm x 800 mm
BigRep Materials: HI-TEMP, HI-TEMP CF, PRO HT
Compatible Materials: ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PA12-GF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC, ULTEM 9085 (Open for 3rd party materials)
Filament Diameter: 1.75 mm
Extruder: Direct Synchronized Extruder (DSX)
Extruder Configuration: Water-cooled multi-DSX (up to 4 extruders)
Hotends: Precise, Power, or High Flow
Nozzles: Brass or hardened steel
Nozzle Diameters: 0.4 mm, 0.6 mm, 1.0 mm
Layer Thickness: From 0.05 mm
Extruder Temp: Up to 450°C
Build Chamber Temp: Up to 180°C
Print Bed Temp: Up to 180°C
Max Print Speed: Up to 350 mm/s
Max Throughput: Up to 250 g/h
Position Accuracy: < 0.05 mm in XY
Movement Speed: XY ~ 400 mm/s
Drive Technology: Servo motor in XYZ
Air Cleaning Unit: Filtration system with active carbon filter and HEPA filter
Safety Circuit: Unmanned 24/7 operation
Connectivity: USB, network
Pause Printing: Out-of-filament sensor with smart 'stop and go' function (build chamber and print bed remain heated)
Slicing Software: Simplify3D, others available on request
Machine Control: HAGE3D industrial control
HMI: LED + 12.1" touchscreen
Camera: Wide angle colour HD camera for real-time remote monitoring
Override Function: Manual override in real-time
User Access: Mult-level user permissions
Power Supply: 3P+N+PE, 400 V / 480 V, 32 A, 50/60 Hz
External Dimensions: 2550 mm x 1950 mm x 1020 mm
Weight: Approx. 1300 kg
Why Choose the ALTRA 280?
The ALTRA 280 stands out for its combination of automation, reliability, and high-temperature capabilities. Its advanced features and robust construction make it an ideal choice for industrial applications, from rapid prototyping to full-scale production. With the ALTRA 280, you can achieve high-quality, reliable 3D printing that meets the demands of modern manufacturing.
By incorporating these features and benefits, the ALTRA 280 not only meets but exceeds the expectations of an industrial 3D printer, making it a valuable addition to any professional setup.
